Foam Concrete Cutting Machine MASTERCUT - 3

MASTERCUT-3 is the lastest model of the CLC block cutting machine designed and manufactured by THT International Co., Ltd used for high capacity blocks production plants.

MasterCut-3 machine can cut any size of bricks, eliminating the need for heavy cassette molds which requires many labor and service, help to increase the production capacity and reducing the production cost.

With modern design and special technical features, MASTERCUT-3 is the best choice for the foam concrete brick manufacturers.

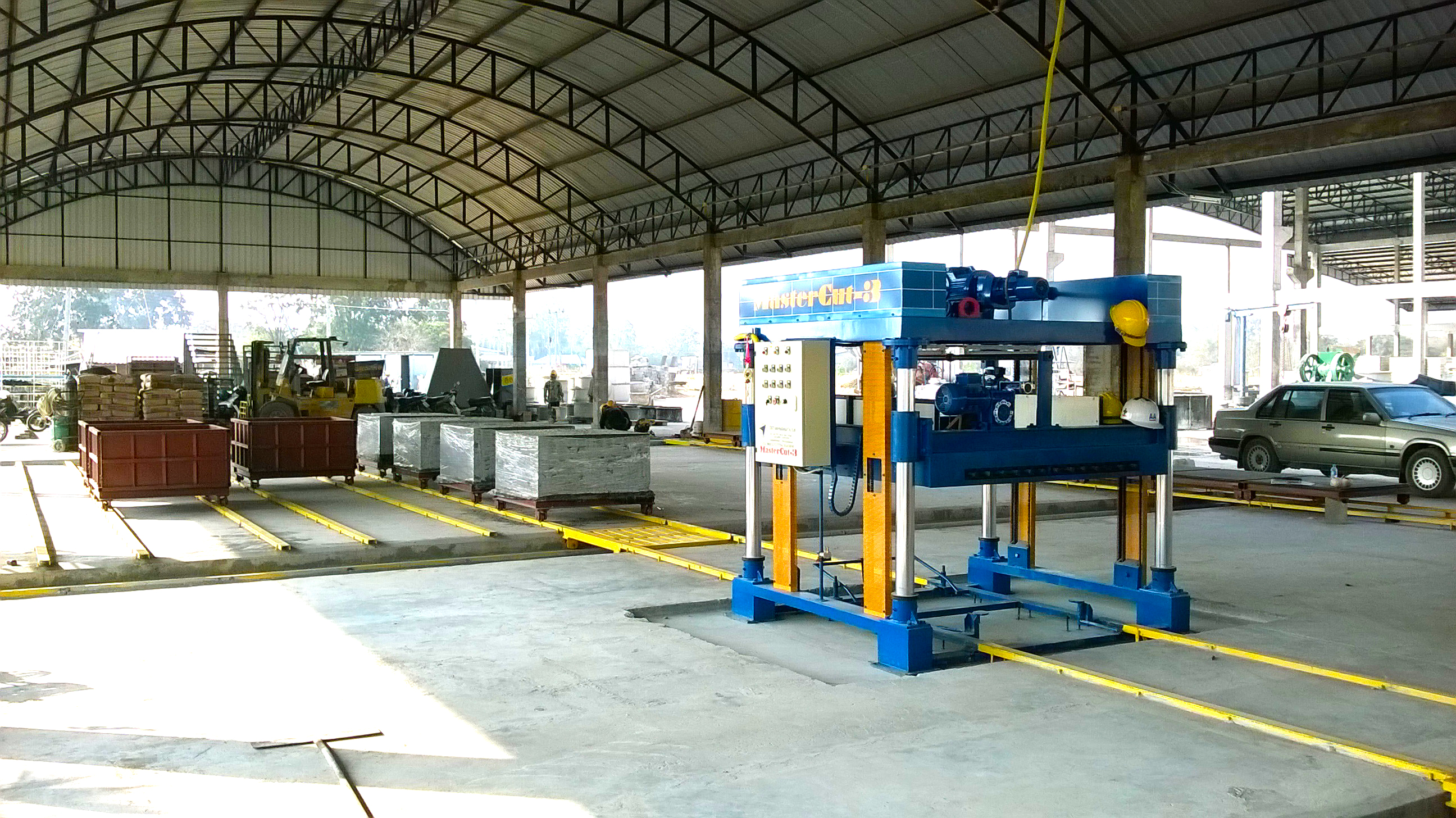

Foam concrete cutting machine MasterCut 3 in a plant

Foam concrete cutting machine MasterCut 3 in a plant

Trays full of lightwight concrete go into MasterCut 3 - clc block cutting machine

Trays full of lightwight concrete go into MasterCut 3 - clc block cutting machine

Technical specifications

Maximum cutting capacity 10m3/hr (only cutting time, not including the traveling time of mold or of the mobile machine)
Electric power 380V- 400V/50Hz/3 phases
Size of concrete block before cutting

1220(L)x1210(W)x400/500/600mm(H) (height of brick depends on the buyer- options)

Control board

mounted on the side of the machine, with all control and operation buttons, emergency safety stop button, … for controlling all the processes of concrete block cutting, alarm, lighting switch, etc..

Electronic components from famous brands such as Omron, LG, Schneider,...
Cutting mode automatic/manual depending on buyer's needs
Size of bricks

nominal standard sizes 10x20x(40/50/ 60cm), tolerance max 2mm.

Other sizes available on request (e.g. 7.5 /15 x 20 x 60cm)

Electric energy consumption Max 3.5 kW
Weight about 1200 kgs
Cutting wires Abrasion resistant steel wires, easy to find on every market
Electrical power consumption Max 3.5kW
Dimensions Approx. 2193Hx 1910W x 2200 L (mm)

*Patent registration No :3759/QD-SHTT dated 7th April 2012

MasterCut 3 in the light concrete production line
MasterCut 3 in a CLC block factory in India
MasterCut 3 in a CLC block factory in India
Setting up MasterCut 3 in Malaysia factory
Setting up MasterCut 3 in Malaysia factory
Successful test run of a MasterCut 3 for a production line in Argentina
Successful test run of a MasterCut 3 for a production line in Argentina
MasterCut 3 being exported to Bangladesh
MasterCut 3 being exported to Bangladesh
The first MasterCut 3 in Mexico
The first MasterCut 3 in Mexico
MasterCut 3 in a container for exporting
MasterCut 3 in a container for exporting

CLC block production plant with MasterCut 3

Our MasterCut 3 cutting machine is designed to be part of a complete CLC block manufacturing plant.

The plant is designed for the production of CLC blocks from cement/fly ash, sand, water and concrete foam. The producer may add the concrete additive to strengthen the concrete blocks

Production capacity: 20m3 to 300m3/day (capacity can be extended by increasing the number of moulds, adding automatic weighing system and adding more cutting machines).



A preliminary design of CLC block plant with MasterCut 3

A preliminary design of CLC block plant with MasterCut 3
