Explore the Revolutionary Features of THT International's V-lite Blocks

The V-lite block, a foam concrete product infused with nanomaterials, is developed by THT International and boasts several outstanding features:
  • Unique 3-directional locking ability due to the interconnecting design of the bottom and top sides.
  • Exceptionally lightweight, with each block weighing only 3.5-4.0 kg, thanks to the use of low-density materials and a significant hollow space.
  • Enhanced strength compared to other lightweight blocks of the same grade, owing to the use of high-quality materials.
  • Superior heat, sound, and fire insulation properties, along with waterproofing and robust load-bearing capacity, ensuring long-lasting durability.

Advanced Design Features of V-lite Blocks for Structural Integration and Easy Installation

  • The end sides of the blocks have grooves that enable the removal of two rectangular sections, creating a horizontal channel for laying rebars. This feature facilitates the casting of beams and lintels within the wall, and the bottom of the blocks can be broken to cast reinforced columns at corners, doors, and windows, eliminating the need for formworks.
  • The blocks are designed for quick and straightforward installation of water, gas, electrical, and communication pipelines within the wall.
  • Two round openings at the bottom of each block can be utilized to connect the hollow spaces across all blocks, allowing for the pouring of low-density foam concrete, ideal for constructing insulated walls.

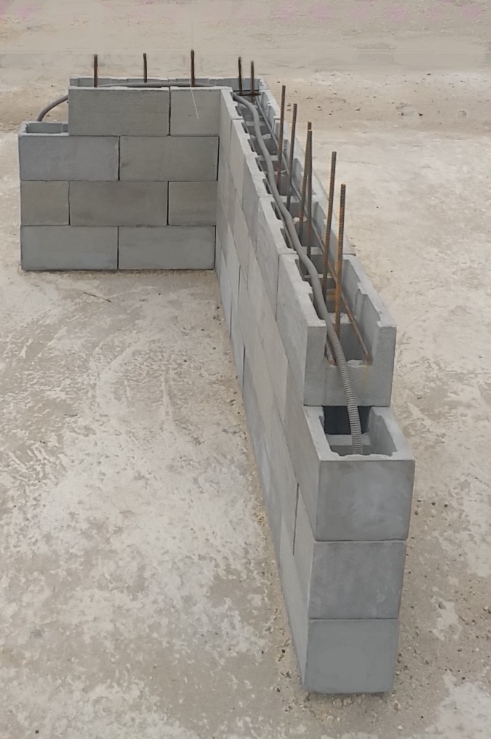

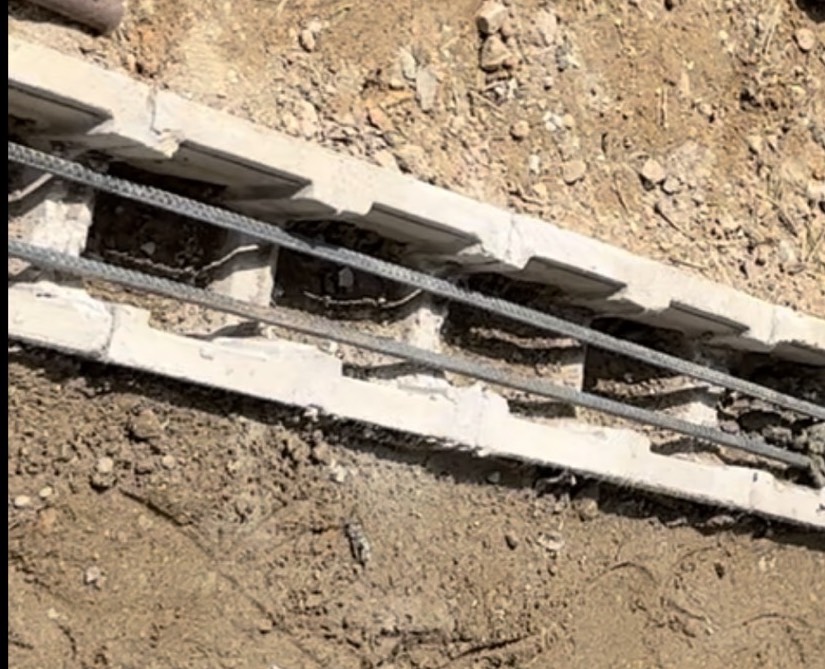

V-lite Block is suitable for foundation casting when filled with steel reinforcement and normal concrete within its hollow space, effectively forming a foundational beam.

V-lite Block is suitable for foundation casting when filled with steel reinforcement and normal concrete within its hollow space, effectively forming a foundational beam.

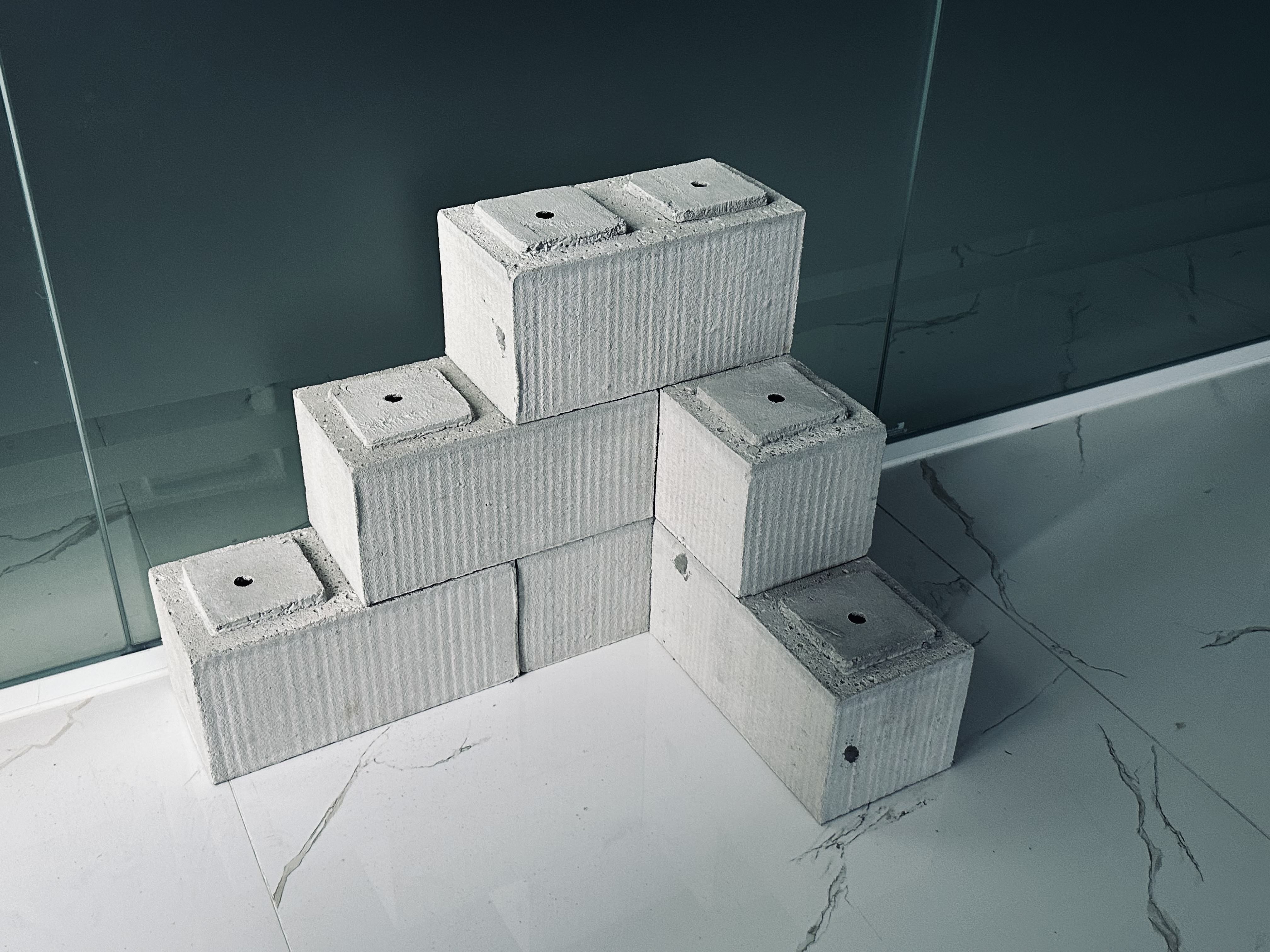

A unique 3-directional locking capability, made possible by its interconnecting design on both the bottom and top sides.

A unique 3-directional locking capability, made possible by its interconnecting design on both the bottom and top sides.

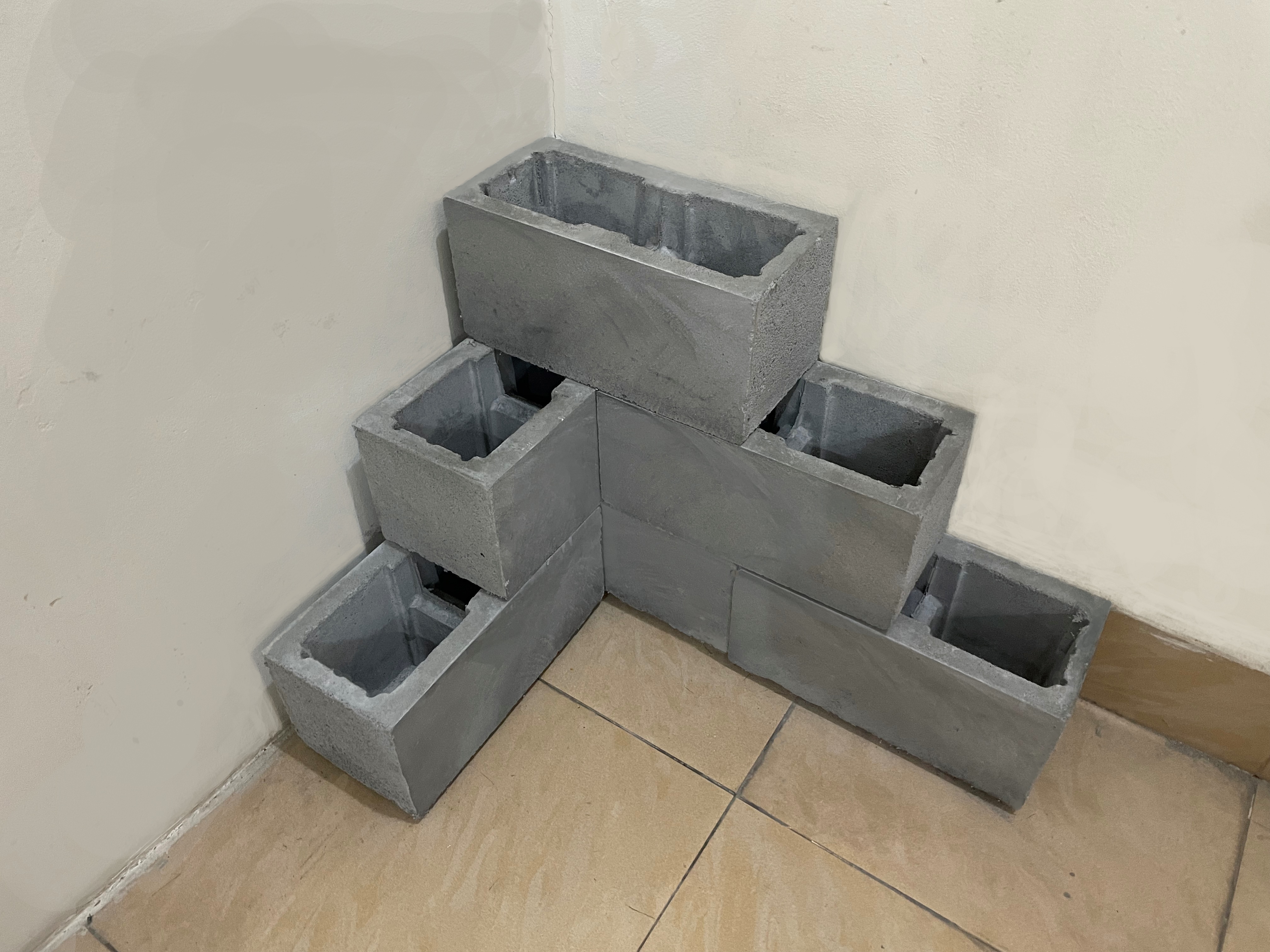

Connectable hollow spaces for pouring insulation foam concrete on site.

Connectable hollow spaces for pouring insulation foam concrete on site.

Simplifying Construction

  • Foundation Casting: Suitable for foundations when reinforced with steel and filled with concrete in their hollow spaces, forming sturdy foundation beams.
  • Ideal for Various Constructions: Perfect for walls in diverse structures, including high-rise buildings, commercial buildings, factories, schools, hospitals, offices, warehouses, and residential homes, especially where high heat insulation is crucial for energy savings.
  • Smooth Wall Finish: Post-installation, the wall surface is flat.
  • Plastering Not Required: This results in savings on materials, labor, and foundational costs, and accelerates the construction process.
  • Eco-Friendly Building Solution: V-lite blocks contribute to green, energy-efficient, and environmentally friendly construction.

Technical specifications:

Size



300 x 150 x 145 mm
Weight under 5kg
Concrete strength (Minimum) 5.0N/mm2
Density  735kg/m3
Sound insulation 60 to 70.5 dB
Water absorption less 10%
Fireproof more than 2 hours
Certification Meets UK Standard BS 5243 & TCVN 9020: 2017

Interested In Manufacturing V-Lite Blocks?

We can supply all of the equipments needed, together with technology transfer to allow you to produce high quality, lucrative CLC blocks.

Please contact us using the form below for more information.
