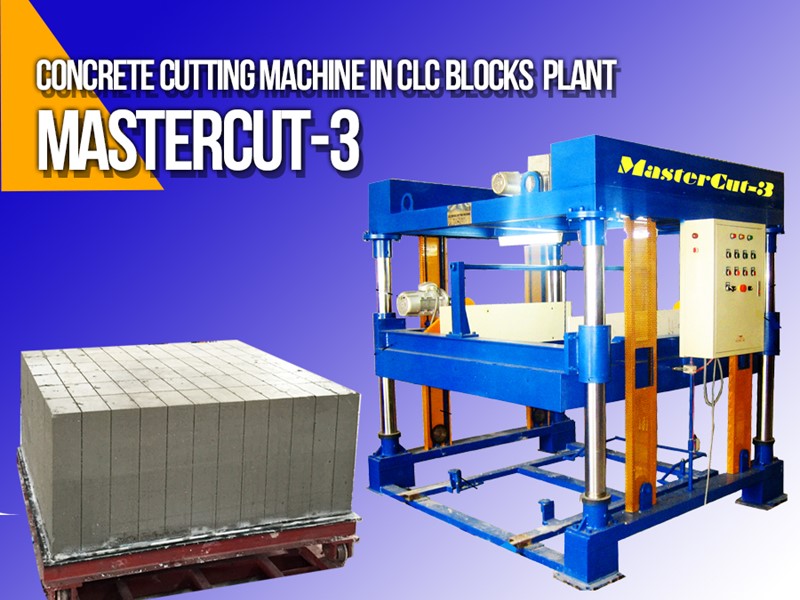

CLC (Foam Concrete) Block Cutting Machine| MasterCut-3

MasterCut-3 is the latest model of CLC block making machine, designed and manufacturer by THT International. The machine features a bi-directional wire-cutting system that allows you to cut any size of blocks efficiently.

This Foam concrete cutting machine also eliminates the need for heavy & expensive battery moulds, and helps you to greatly reduce labour and production costs.

Built to a very high standard with components from well known brands, MasterCut-3 has been imported to many continents around the world like North & South America, Australia, Africa and the EU ...

With a modern design and many special technical features, MasterCut-3 is the best choice for CLC block manufacturers today.

What set MasterCut apart from other CLC block cutting machines?

High speed

MasterCut can cut any size of bricks quickly and efficiently by utilising our patented bi-directional wire-cutting system.

In one work shift, it takes only 5 mins to cut a cake of light concrete into 72 to 96 CLC blocks (depending on the size of your block).

And the maximum cutting capacity is 10mper hour, a lot higher than many other CLC cutting machines in the market today.

Cost saving

Our CLC block making machine eliminates the need for heavy battery moulds, and helps to reduce labour and production costs as well as to improve the quality of blocks.

You no longer need to remove side walls from battery moulds, the bricks produced will not have any oily residues, and the overall efficiency and cost savings of your plant will be greatly improved

High quality

MasterCut is built with high quality and durable alloy steel frame. Additionally, the machine is equipped with electric components from top quality brands such as Schneider, Omron, LG, etc., to ensure a long service lifetime.

The quality of the blocks after cutting is extremely high, consistent in size and don't cause wall cracking because there is no oily residue on the surface of the blocks.

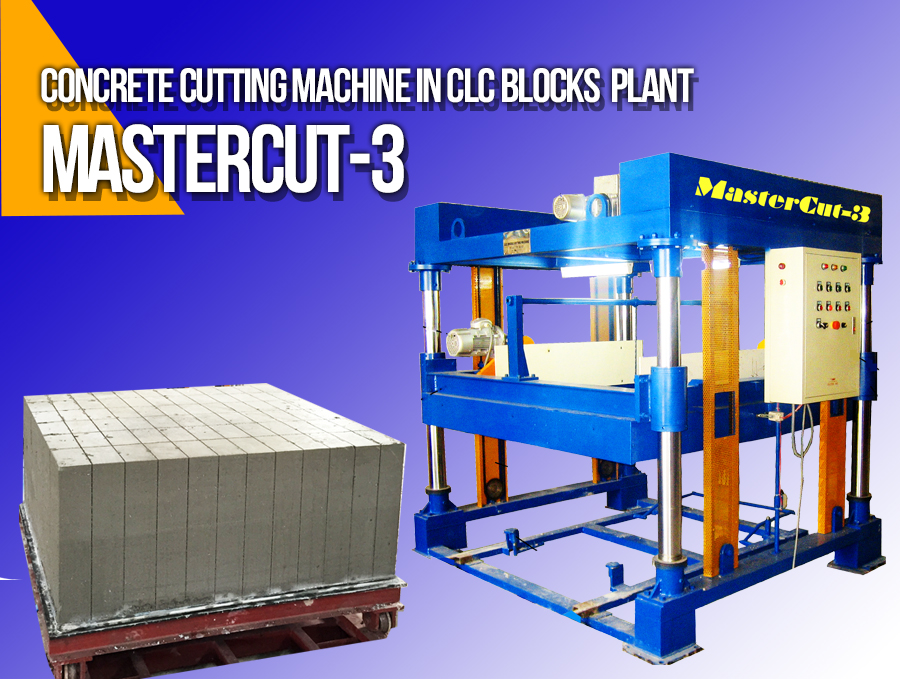

MasterCut 3 in a small CLC block plant, capacity from 30 to 60 m3/day

The video features the MasterCut-3 lightweight brick cutter in a CLC brick production line with a capacity of 30 - 60 cubic meters per day. This plant was installed by our company in Dhaka, Bangladesh in 2014, and it is still functioning and produces thousands of bricks per day.

Technical specifications

Maximum cutting capacity

10 m3/hr

Electric power

380V- 400V/50Hz/3 phases

Size of concrete block before cutting

1220(L) x 1210(W) x 400/500/600mm(H) (height of brick depends on the buyer’s request)

Control board

Mounted on the side of the machine, with all control and operation buttons, emergency safety stop button, … for controlling the cutting cycle, alarm, lighting switch, etc..

Cutting mode

Automatic or manual depending on buyer's needs

Size of bricks

Standard sizes 100 x 200 x (400/500/600mm), tolerance max 1.5mm

Other sizes available on request (e.g. 150 x 200 x 600mm)

Electric energy consumption

Max 3.5kW

Weight

About 1200Kgs

Cutting wires

Abrasion resistant steel wires, easy to find in every market

Electrical power consumption

Max 3.5kW

Dimensions

Approx. 2193H x 1910W x 2200L (mm)


*Patent registration No :3759/QD-SHTT dated 7th April 2012

MasterCut-3 Is Now Part of Many CLC Block Plants Around the World

With over 10 years of experiences in the lightweight foam concrete field, we have exported many MasterCut machines to India, EU, Sound Afirica, Malaysia, Thai Lan, Myanmar, South America, ... Our MasterCut CLC block cutting machines are now working at full capacity within many plants around the world and produce thousands of CLC blocks every day.

>> See more our projects

MasterCut 3 in the light concrete production line

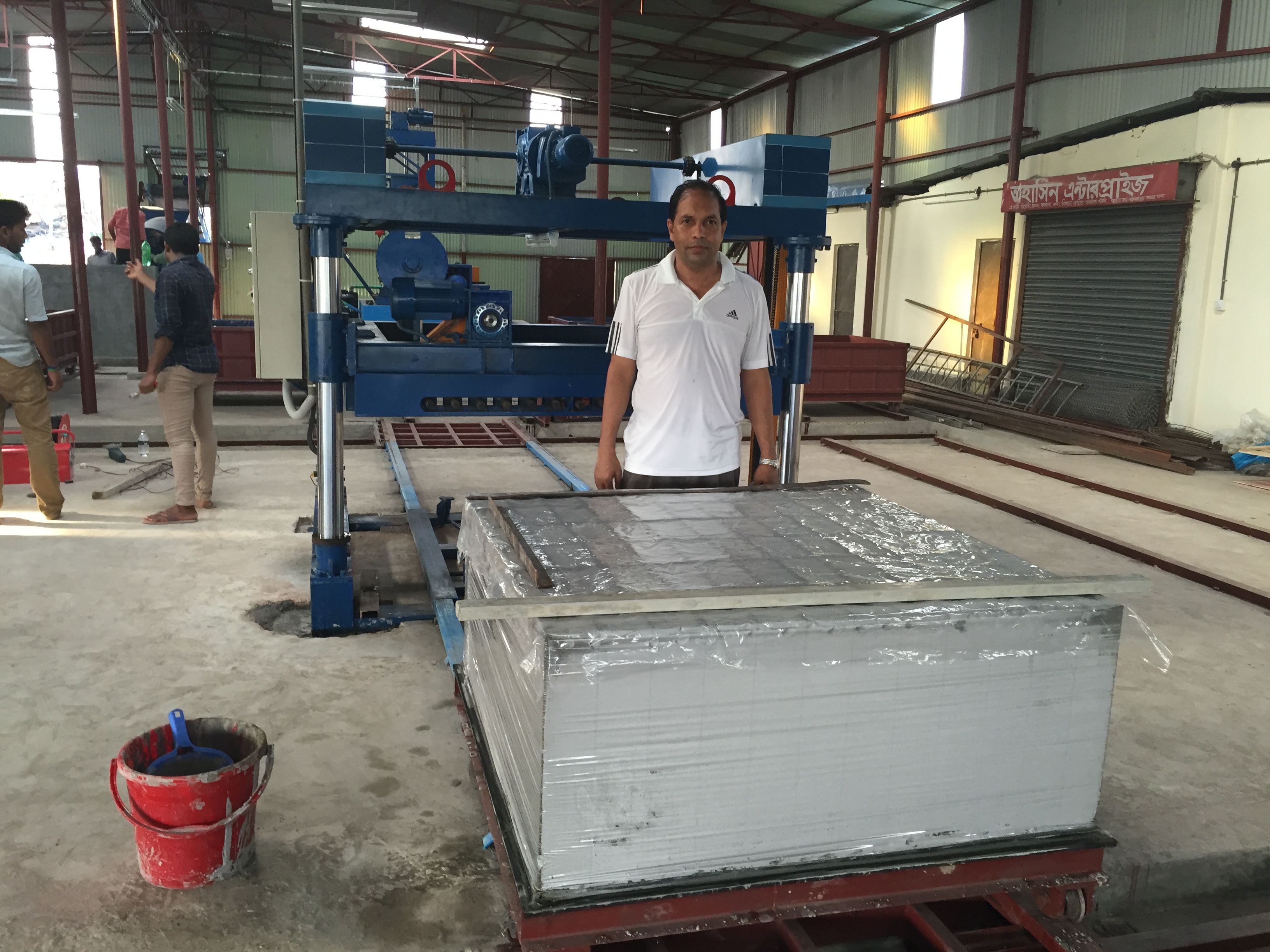

CLC Block making machine - MasterCut 3 in a CLC block factory in India
CLC Block making machine - MasterCut 3 in a CLC block factory in India

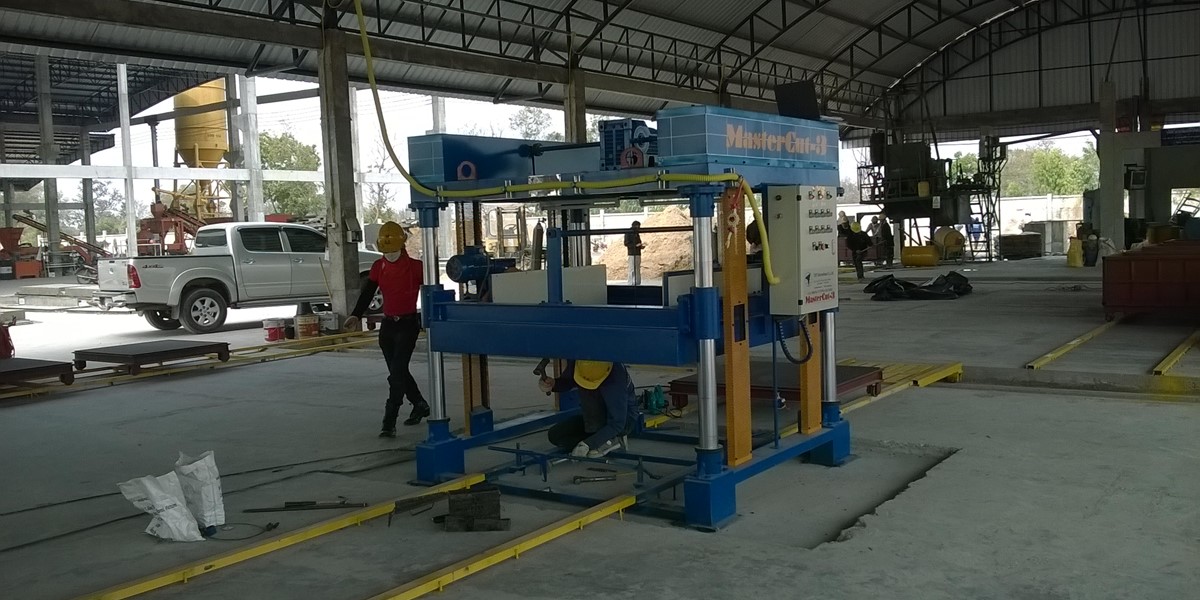

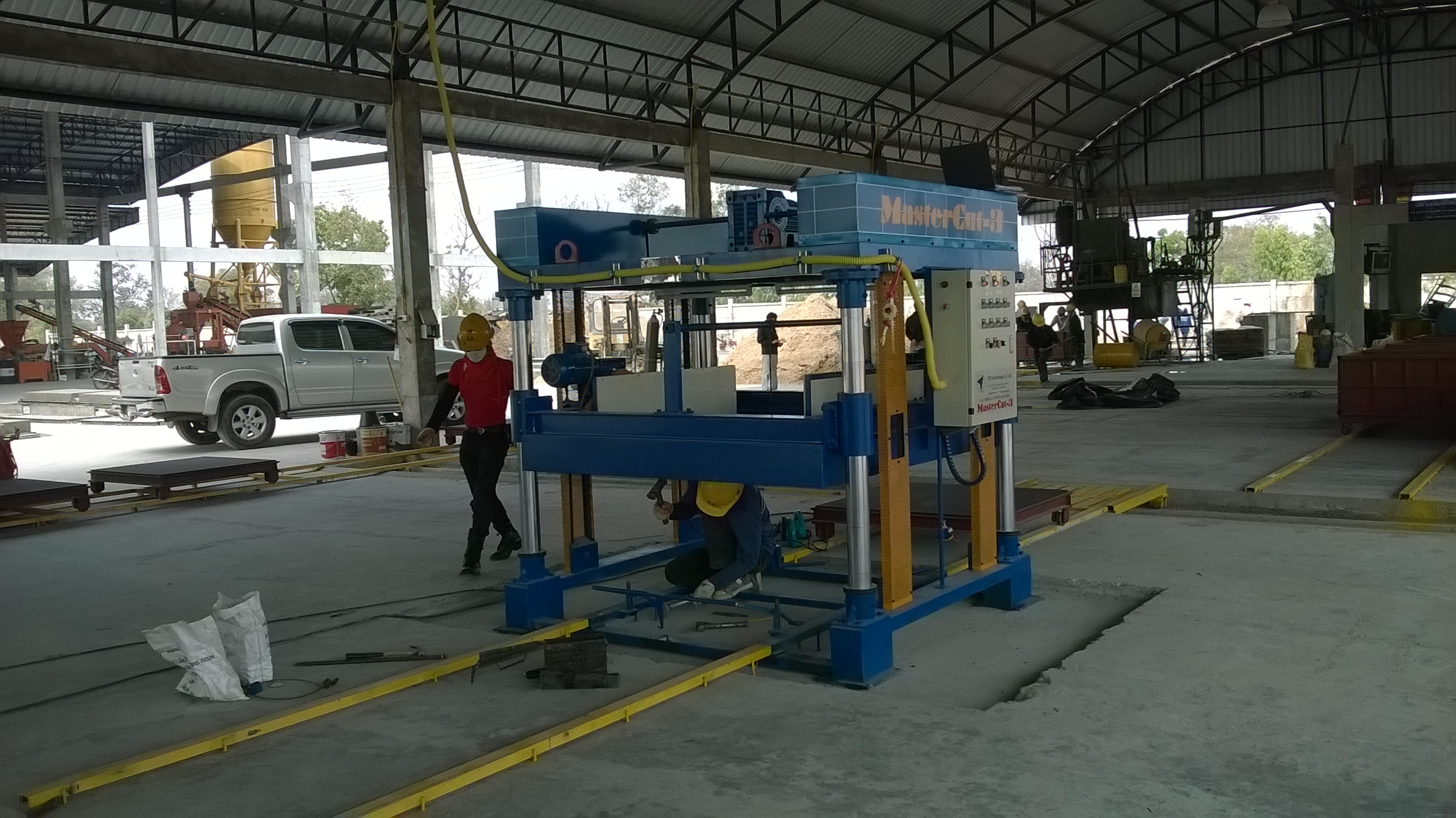

Setting up MasterCut 3 in Malaysia factory
Setting up MasterCut 3 in Malaysia factory

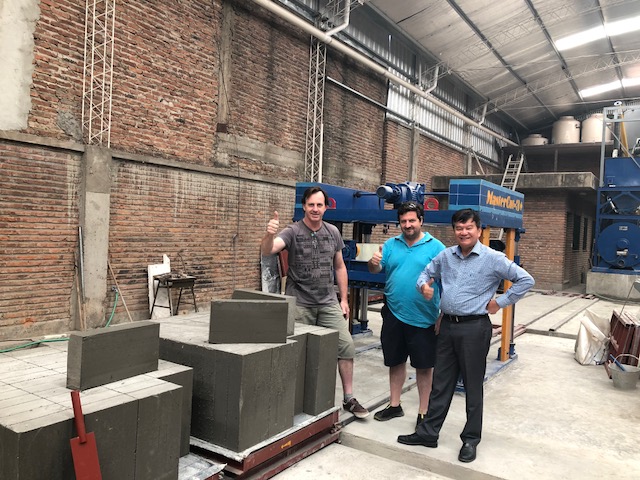

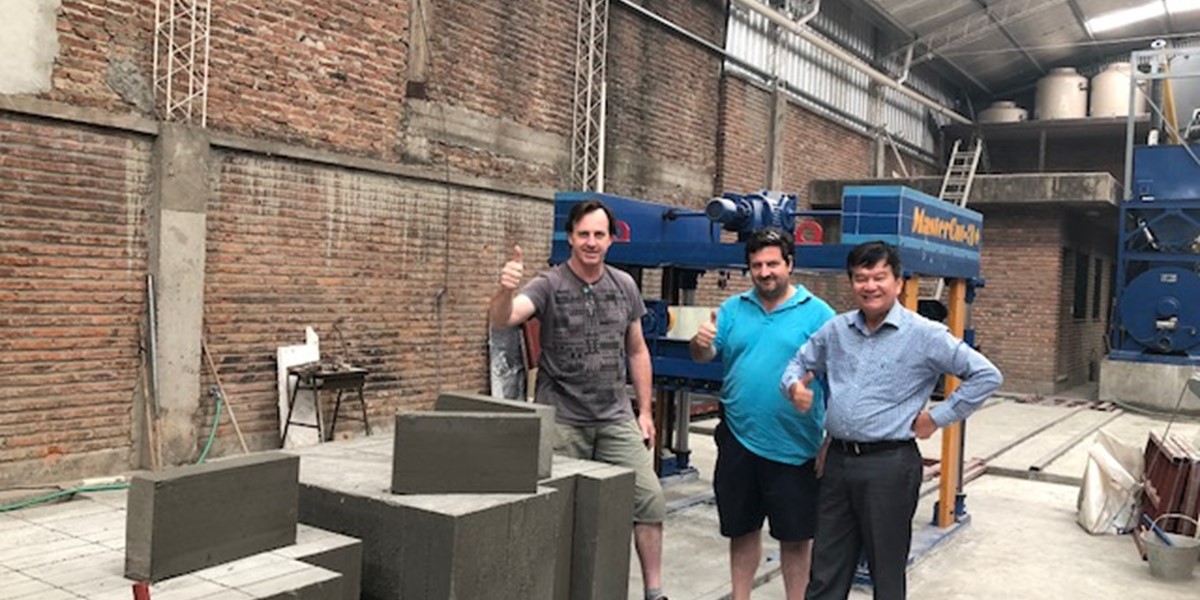

Successful test run of a MasterCut 3 for a production line in Argentina
Successful test run of a MasterCut 3 for a production line in Argentina

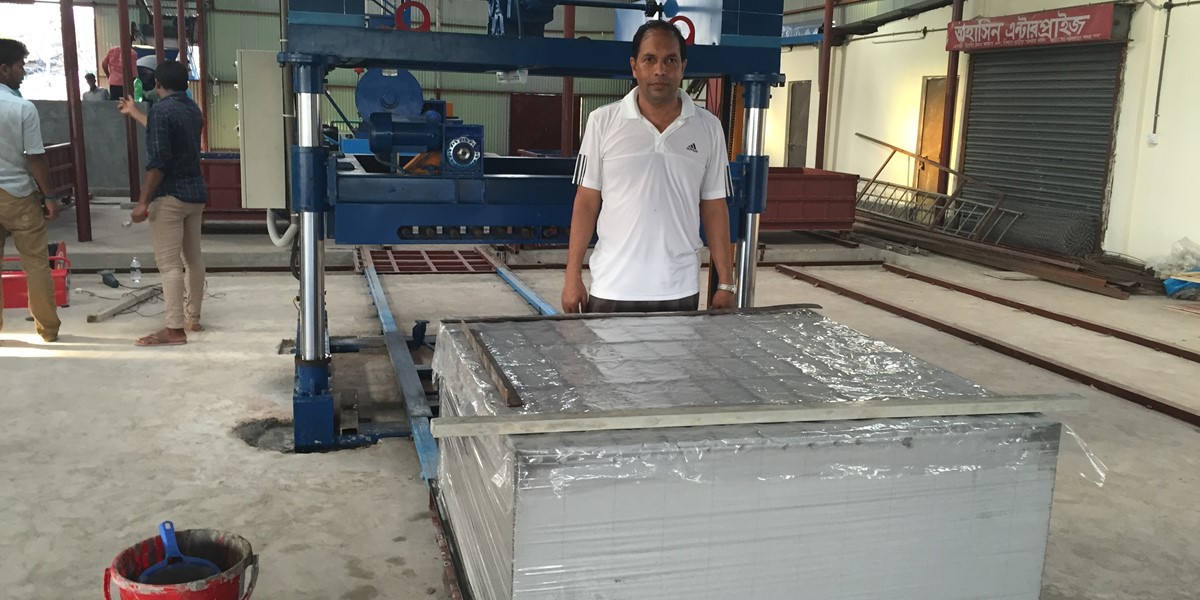

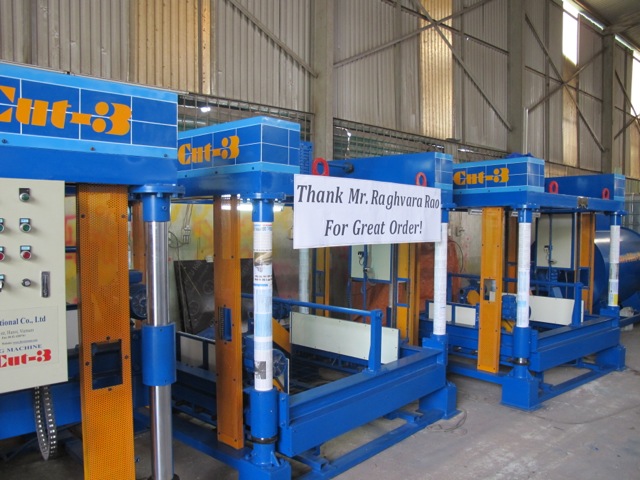

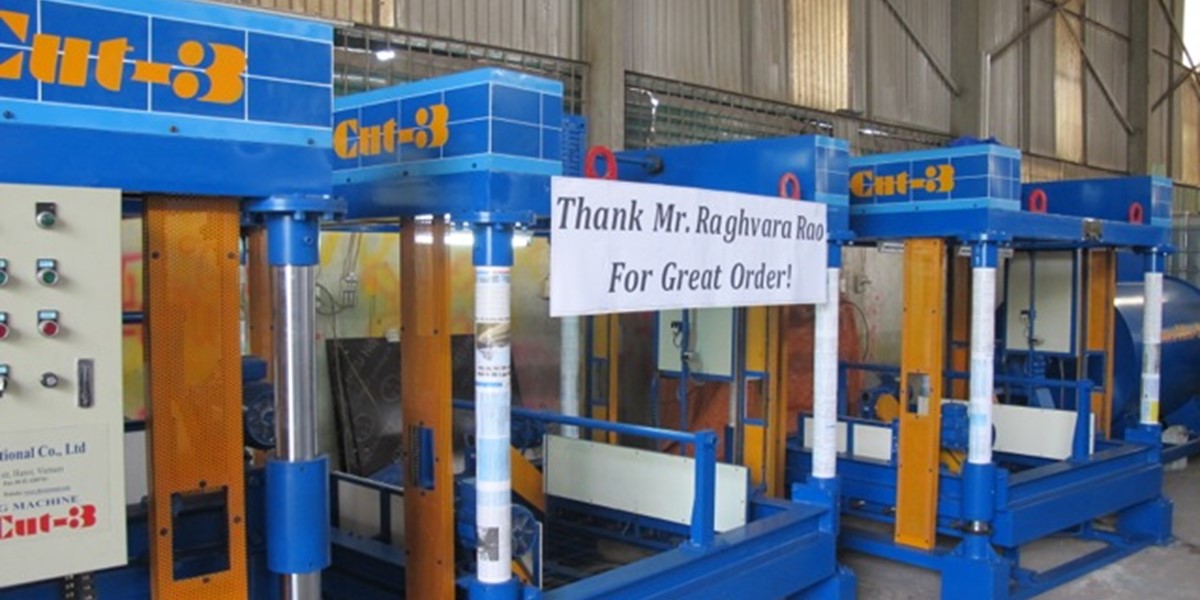

MasterCut 3 being exported to Bangladesh
MasterCut 3 being exported to Bangladesh

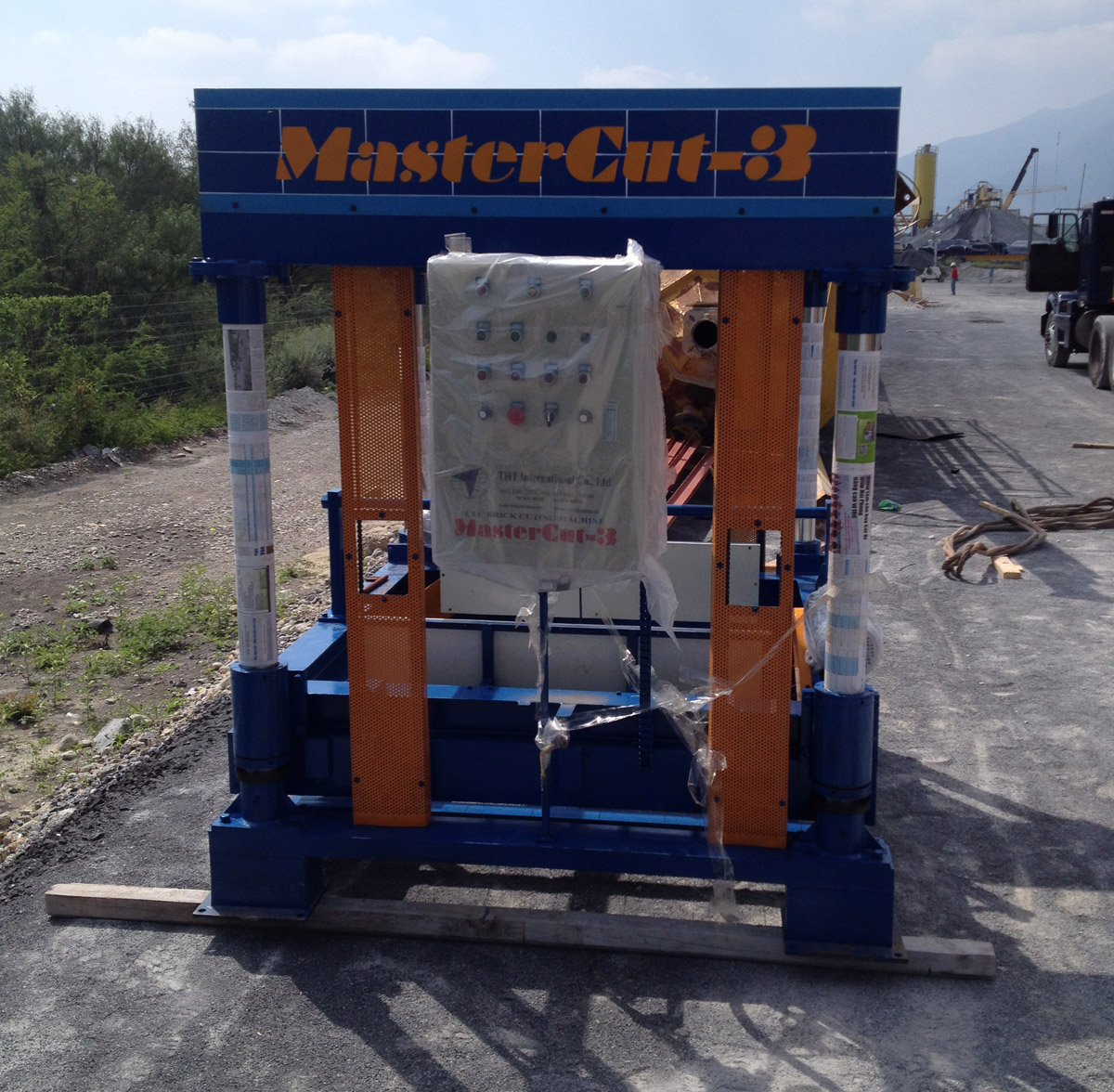

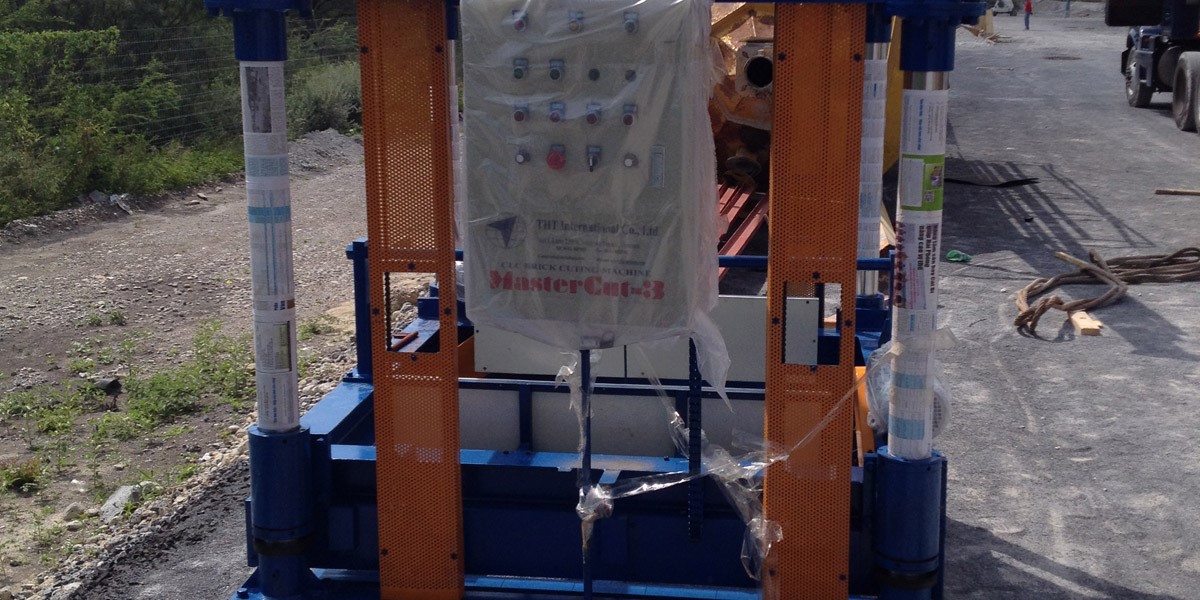

The first MasterCut 3 in Mexico
The first MasterCut 3 in Mexico

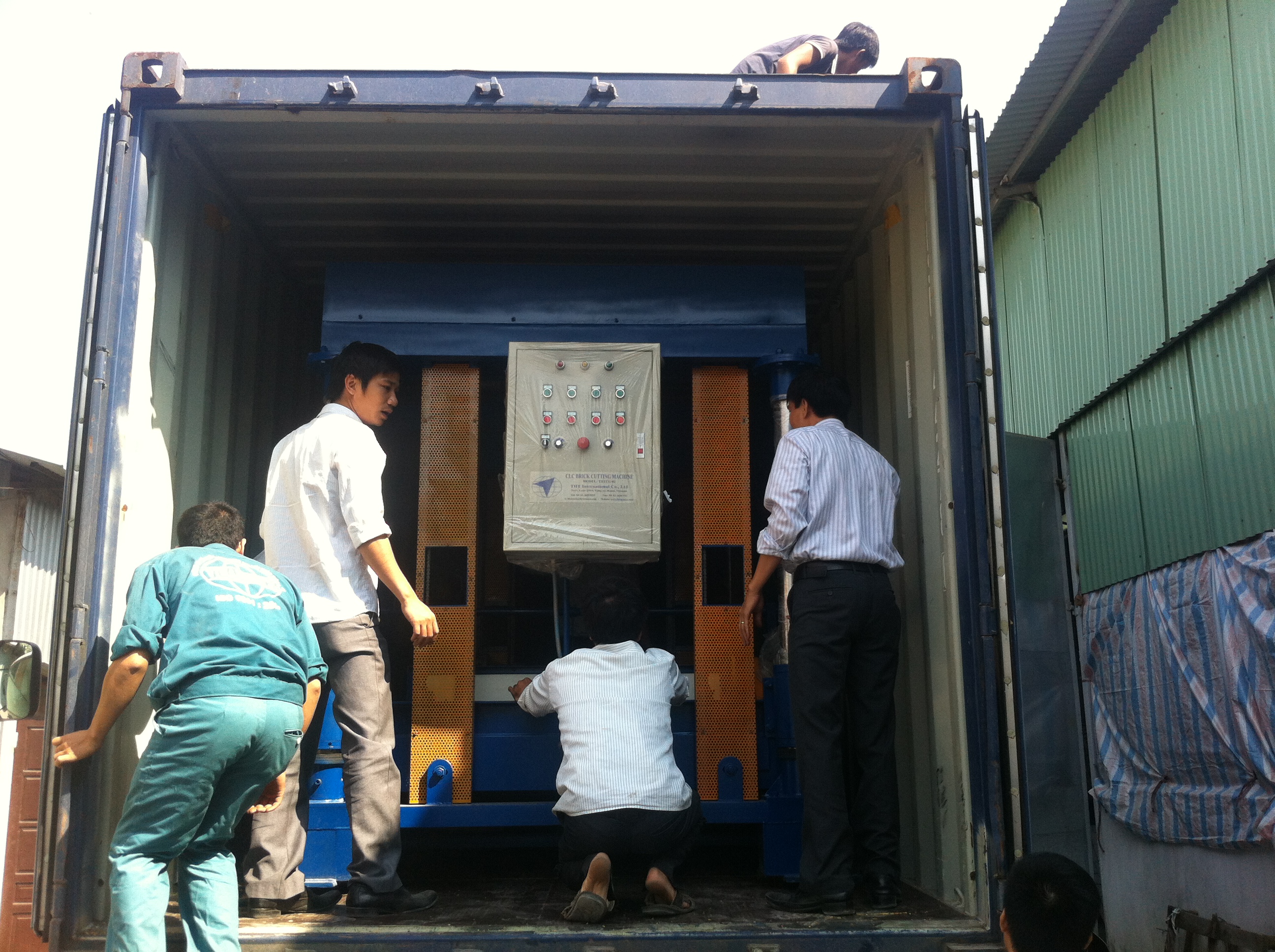

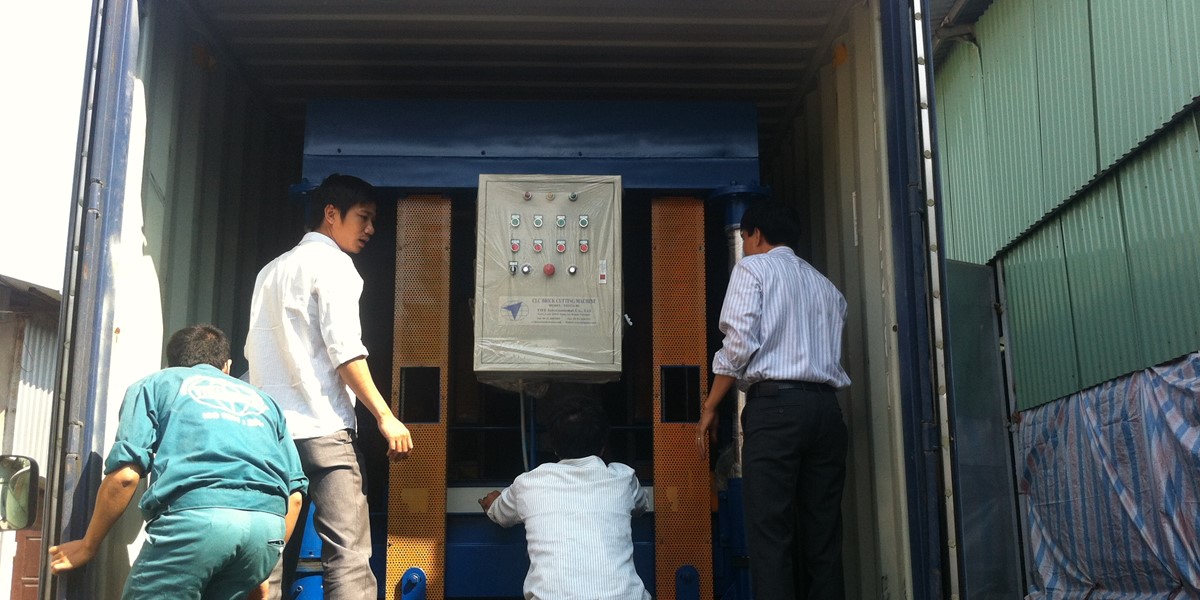

MasterCut 3 in a container for exporting
MasterCut 3 in a container for exporting

CLC wire cutting machine operates in plant

Our MasterCut 3 is designed to be part of a complete CLC block manufacturing plant.

The plant is designed for the production of CLC blocks from cement/fly ash, sand, water and concrete foam. The manufacturer may add the concrete additives to strengthen the concrete blocks if they wish.

Production capacity: 20m3 to 300m3/day (capacity can be extended by increasing the number of moulds, adding automatic weighing system and adding more CLC block making machines).

A design of CLC block plant with MasterCut 3

A design of CLC block plant with MasterCut 3

Other relevant CLC block making machines

We have also supplied many kinds of CLC block making machines since 1996.

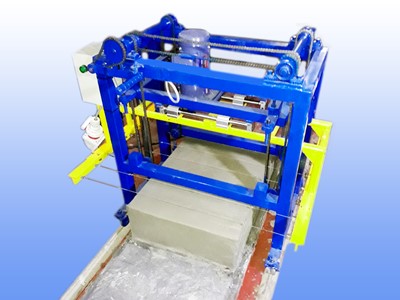

Small and compact CLC block cutting machine

MiniCutter

Small & compact CLC block cutting machine

Foam generator for clc blocks

FoamMaster

Foam generator for clc blocks

clc block mould

CLC block mould

Casting molds to create a large concrete cake

Foam concrete mixer machine

MasterMix

Foam concrete mixer machine
